Everything Has an Address
history, carving, science, and a hypothesis that could rewrite the provenance of a papal treasure
The Getty conservation team called because they had a cabinet they wanted to understand better.
That’s how these things usually start — not with a mystery, but with a question so routine it barely registers as one. The Borghese-Windsor Cabinet had recently been acquired by the Getty Museum in Los Angeles: a piece of Renaissance furniture built around 1620 for Camillo Borghese, later Pope Paul V, its surfaces encrusted with agate and lapis lazuli and jasper in the Italian technique called pietra dura. Spectacular object. Well-documented history. They wanted to know more about the stones.
I said yes, because of course I said yes.
What nobody told me — what nobody knew — was that the cabinet had been waiting four hundred years for someone to ask the right question.
The Cabinet

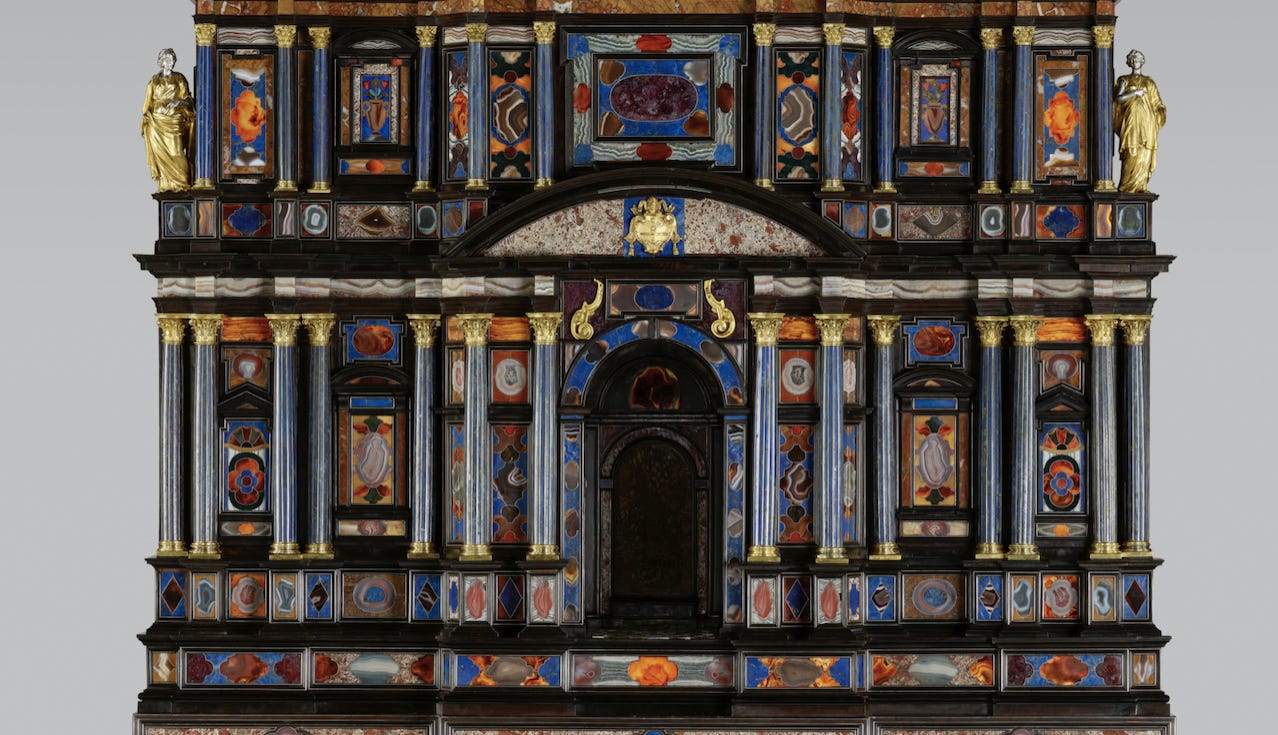

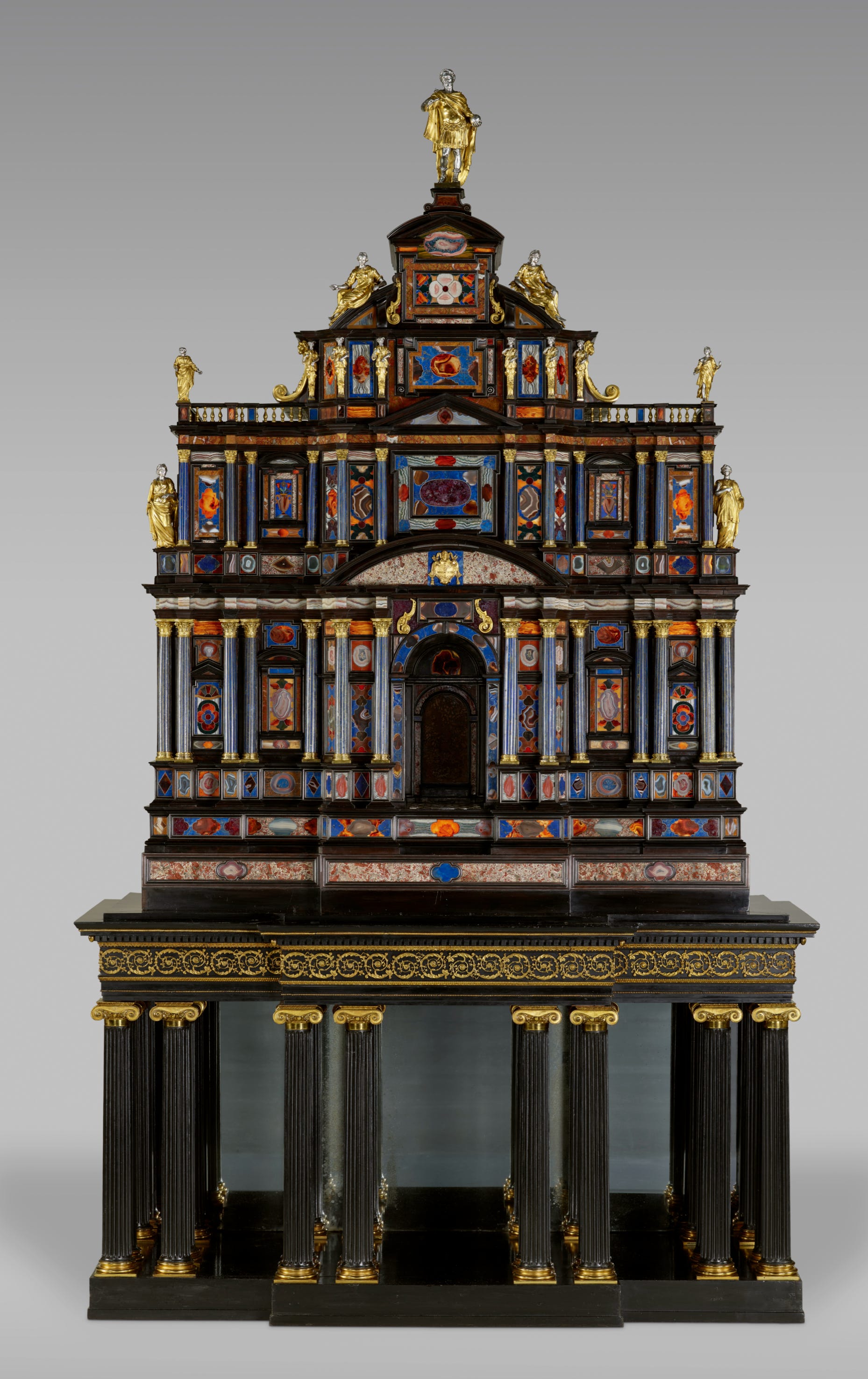

Stand in front of the Borghese-Windsor Cabinet and your first instinct is to look for a door. Not because it has one — it does, a tiny arched niche at the center of the facade — but because the thing in front of you is not furniture in any sense you recognize. It is a building. Three stories of ebony and gilt bronze columns, fluted and capped with Ionic capitals, rising in tiers to a pediment where a gilded Roman emperor stands watch over everything below. Statuary occupies the cornices. A crowned figure commands the apex.
And everywhere, inlaid into every surface between the columns and beneath the cornices and framing the arches: stone. Hundreds of individually cut and fitted panels of agate, lapis lazuli, and jasper, set in the Italian technique called pietra dura — hard stone inlay, each piece shaped to fit its cavity with a precision that, four centuries later, still holds. Oranges and blues and smoke-grays and translucent whites. Oval panels displaying the banded rings of agate like tiny windows into geology. Rectangular fields of deep lapis. Jasper the color of dried blood.
The stones aren’t decoration in the way wallpaper is decoration. They are the object. The ebony frame exists to organize them. The gilt figures exist to celebrate them. The whole elaborate architectural fantasy — modeled on a Roman palace facade, built at a scale that fits inside a room — is a machine for displaying stone.
And not just any stone. The Getty’s conservation scientists have traced the provenance of nearly everything on this cabinet. The alabaster almost certainly came from Egypt. The travertine from Italy — local, ubiquitous, Roman. The lapis lazuli from Afghanistan, which is where virtually all European Renaissance lapis came from, via overland trade routes that stretched from Badakhshan to Venice. Even the ebony frame has been sourced: Getty scientists used DNA analysis to identify the wood as a Central American species — timber harvested somewhere in the forests of what is now Honduras or Guatemala, loaded onto Spanish ships at the mandatory colonial port of Veracruz, assembled with the annual treasure fleet in Havana, and then carried east across the Atlantic to Seville before making its way overland to Rome. By the time someone was sawing it into columns for a papal cabinet, that wood had crossed an ocean and two continents.
This is worth pausing on. Italy did not colonize the Americas. But the cabinet sitting in Rome was built from wood that came from them — because the men who organized the global trade networks of the early 17th century were, in substantial part, Italian. Genoese bankers had been embedded in Seville since the 1490s, financing Spanish Atlantic ventures and holding colonial trade contracts from the very beginning of the colonial era. The man who named the continents, Amerigo Vespucci, was Florentine, working for the Medici, sailing first for Spain and then for Portugal, and serving as Spain’s chief navigator for the last four years of his life. The first monopoly contract for colonial trade issued by the Spanish crown — in 1517 — was immediately purchased by Genoese merchants in Andalusia. Columbus himself was from Genoa. Italy didn’t plant a flag. It provided the capital, the navigators, and the commercial infrastructure through which everyone else’s flags were planted. The ebony in this cabinet moved through that infrastructure.
The agate is the one material that has never had a confident answer. Everything else on this cabinet has an address. The agate alone remained a question mark.
This was built around 1620 for Camillo Borghese, who became Pope Paul V — and it is named for him. Borghese is straightforward. Windsor requires more explanation.
The cabinet passed through several hands across four centuries, each chapter leaving its mark on the name. From Pope Paul V it moved, by routes not entirely documented, until 1820, when it entered the collection of King George IV of England, who kept it at Windsor Castle. That residency — a papal treasure sitting in an English royal palace — is where the second half of the name comes from. In 1959 it was acquired by Robert de Balkany, an international collector, before the Getty Center purchased it in 2016 and brought it to Los Angeles, where it now sits in a climate-controlled gallery on a hill above the Pacific Coast Highway, waiting for visitors to walk past it and read the label.
Four owners across four centuries. Pope to king to collector to museum. The stones traveled with it through all of it, carrying their geological biography in silence.
There is a companion piece, the Sixtus Cabinet, built around 1585 for Pope Sixtus V. Similar construction, similar stones, similar ambition — built a generation earlier for a different pope, and decorated with agate from the same era and presumably the same trade networks. The two objects exist in parallel, one analyzed, one not. That asymmetry is part of what makes the story unfinished.
That assumption about the agate’s origins is where the question began.
The Valley That Made the World’s Agate
For centuries, if you wanted agate in Europe, you went to one place: the Nahe River Valley, near the small German town of Idar-Oberstein.
The geology there is Permian — ancient volcanic flows, 280 million years old, riddled with cavities where silica-rich groundwater slowly crystallized into banded chalcedony. Agate. The Romans knew about it. Medieval lapidaries knew about it. By the late 1400s, the river itself had been put to work: water wheels powered massive sandstone grinding wheels, and craftsmen lay flat on boards, pushing agate against the spinning stone with the weight of their own bodies. Not sitting. Not standing. Lying prone on a wooden plank, face inches from the grinding wheel, holding the stone against it for hours. Generation after generation, the same families, the same river, the same stone. The Nahe Valley smelled like wet rock and hot dust for four hundred years.
By 1620, when the Borghese-Windsor Cabinet was being assembled in Rome, Idar-Oberstein was the source. This was not a question anyone thought to examine. It was simply known — the kind of knowledge that calcifies into assumption so completely that nobody thinks to test it.
But Idar-Oberstein’s identity is more complicated than “source.” It was also, crucially, a processing center — the place where rough stone became finished gem. Over centuries, those roles collapsed into each other in the historical record. “From Germany” came to mean both “dug from the Nahe Valley” and “cut in the workshops of Idar-Oberstein,” and nobody kept careful track of which was which. When Brazilian agate began arriving in the early 19th century — shipped as ballast on empty vessels returning from South America — it went to Idar-Oberstein to be cut. The label “German agate” started meaning two completely different things simultaneously, and the convention never caught up.
So when art historians said the agates in papal cabinets came from Germany, they were probably right. The question I wanted to answer was: which Germany?
The Problem With Looking
Before I tell you how we solved this, I need to explain why it was hard.
The obvious approach — look at the stones and tell me where they came from — doesn’t work. Not because mineralogists aren’t good at looking. It’s because agate is a profoundly uncooperative witness.
A single locality can produce agate in dozens of colors, patterns, and textures. Idar-Oberstein material runs from translucent gray to deep orange to banded white and rust. Brazilian agate from Rio Grande do Sul can look almost identical — or completely different — depending on which layer of which nodule you’re cutting. Indian agate, Uruguayan agate, agate from the Atlas Mountains: all of it, banded silica, all of it capable of presenting in overlapping ranges of color and pattern. An expert eye can make educated guesses. But educated guesses are not provenance, and on an object this significant, a guess is not good enough.
The deeper problem is bias. If you sort by eye, you sort by what you expect to see. I knew the historical assumption was Idar-Oberstein. I knew what German agate looks like. That knowledge would inevitably shape what I noticed and what I discounted — not through dishonesty, but through the ordinary mechanics of pattern recognition. I needed a method that didn’t know the hypothesis. Something measurable, reproducible, and agnostic to the question being asked. Something that would give the same answer whether I was looking or not.
That requirement led me to the clock.
A Clock Built Into the Stone
Here is the thing about agate that most people don’t know: it carries a clock inside it.
Agate is made primarily of quartz — silicon dioxide, crystallized. But it also contains a second phase called moganite, a metastable polymorph of silica that forms alongside quartz as the agate grows. Moganite is impatient. It doesn’t want to exist. Given enough time and the right conditions, it converts back to quartz, and once it’s gone, it’s gone. The older the agate, the less moganite survives.
This means you can read geological age directly from the crystal structure of the stone.

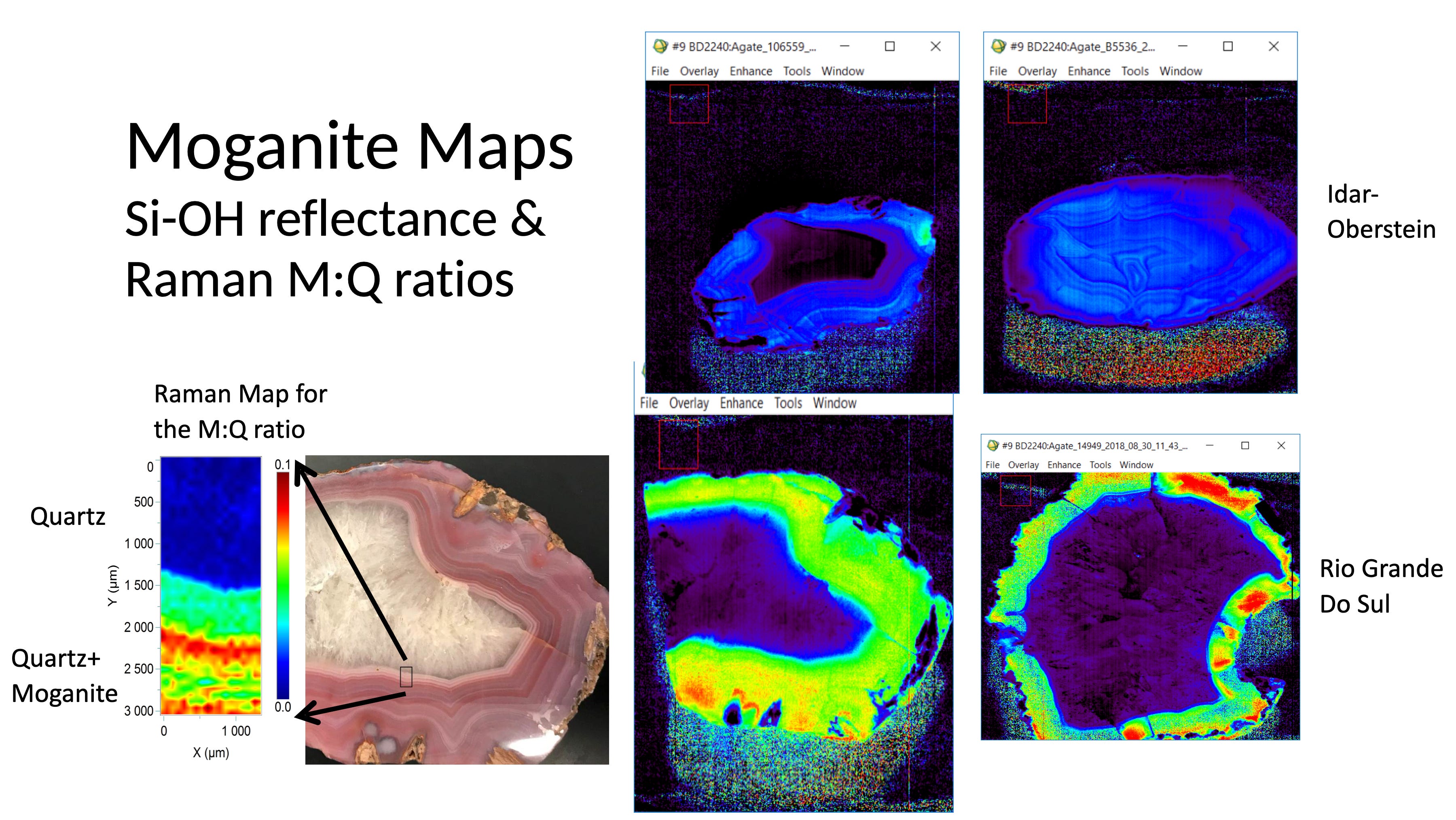

Agate from the Nahe Valley near Idar-Oberstein is Permian — roughly 280 million years old. By now, most of its moganite is long gone. Agate from Rio Grande do Sul in southern Brazil is Cretaceous — around 120 million years old. Young enough that moganite is still present in measurable quantities. The two localities produce agate that looks, to the untrained eye, quite similar. To a Raman spectrometer, they are completely distinct.
Look at that image for a moment. The agate is not uniform. Moganite doesn’t distribute evenly — it concentrates in the cryptocrystalline bands that form during specific growth stages, leaving the larger crystalline zones essentially clean. This heterogeneity is actually useful: it means you can isolate the moganite-bearing bands specifically and measure their ratios precisely, rather than averaging across the whole sample and losing the signal. The narrow-band approach we developed turned out to be more reproducible in distinguishing Brazilian from German agates than any whole-sample method, precisely because it works with the stone’s internal structure rather than against it.
The technique is called Raman spectroscopy. A laser illuminates the sample; the scattered light carries a fingerprint of the molecular bonds present. Quartz scatters differently than moganite. The ratio between them tells you, within limits, how old the stone is. And age, in this case, is a proxy for provenance.
Building the Reference Library
Here is the challenge: you cannot remove stones from the Borghese-Windsor Cabinet to analyze them in a laboratory. The object is too important, too intact, too irreplaceable — and that’s exactly as it should be.
The first attempt to work around this was to bring the instrument to the cabinet. We tried Raman spectroscopy directly on the stones in situ at the Getty — laser pointed at the surface, no contact, no sampling. It didn’t work. The geometry of the mounted stones, the surface polish, the ambient conditions in the gallery — the spectra came back unsuitable. Too much noise, not enough signal. Plan A failed.
So we built the library first and brought it to the cabinet, rather than the other way around.

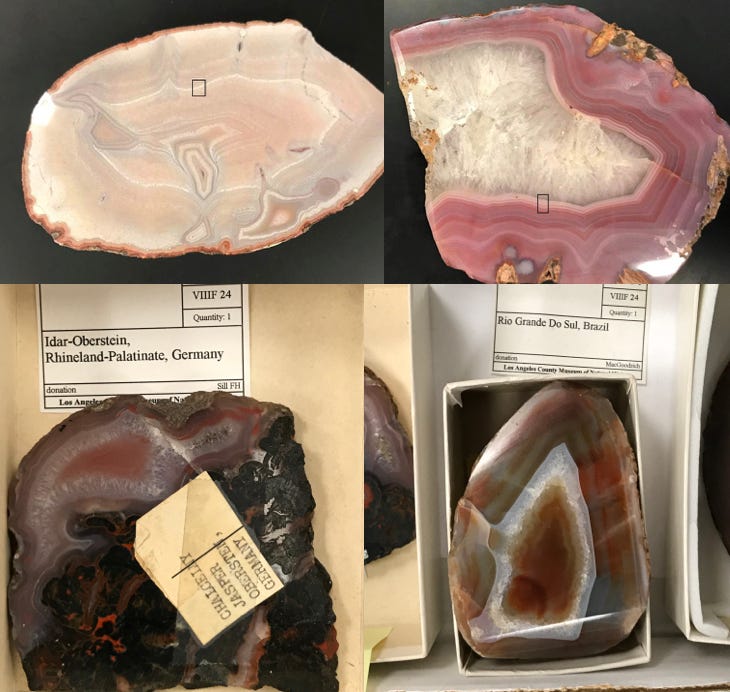

Working at the Natural History Museum of Los Angeles County and in collaboration with the Smithsonian Institution’s National Museum of Natural History, we collected and analyzed dozens of agate specimens of known provenance — agates with documented localities, from museum collections built over more than a century. Brazilian agates from Rio Grande do Sul. German agates from the Nahe Valley.
We mapped them with three techniques: Raman spectroscopy (for the quartz-to-moganite ratios), X-ray fluorescence (for bulk geochemistry), and visible-to-shortwave infrared hyperspectral imaging (for a broader optical fingerprint that doesn’t require contact with the sample).
The results were clean. Brazilian agates consistently showed moganite concentrations of 8% or higher in their cryptocrystalline bands. Idar-Oberstein agates came in below 2%. No overlap. The two populations were distinct enough that a trained instrument could tell them apart without removing a single stone from its setting.
Then we took the library to the Getty.

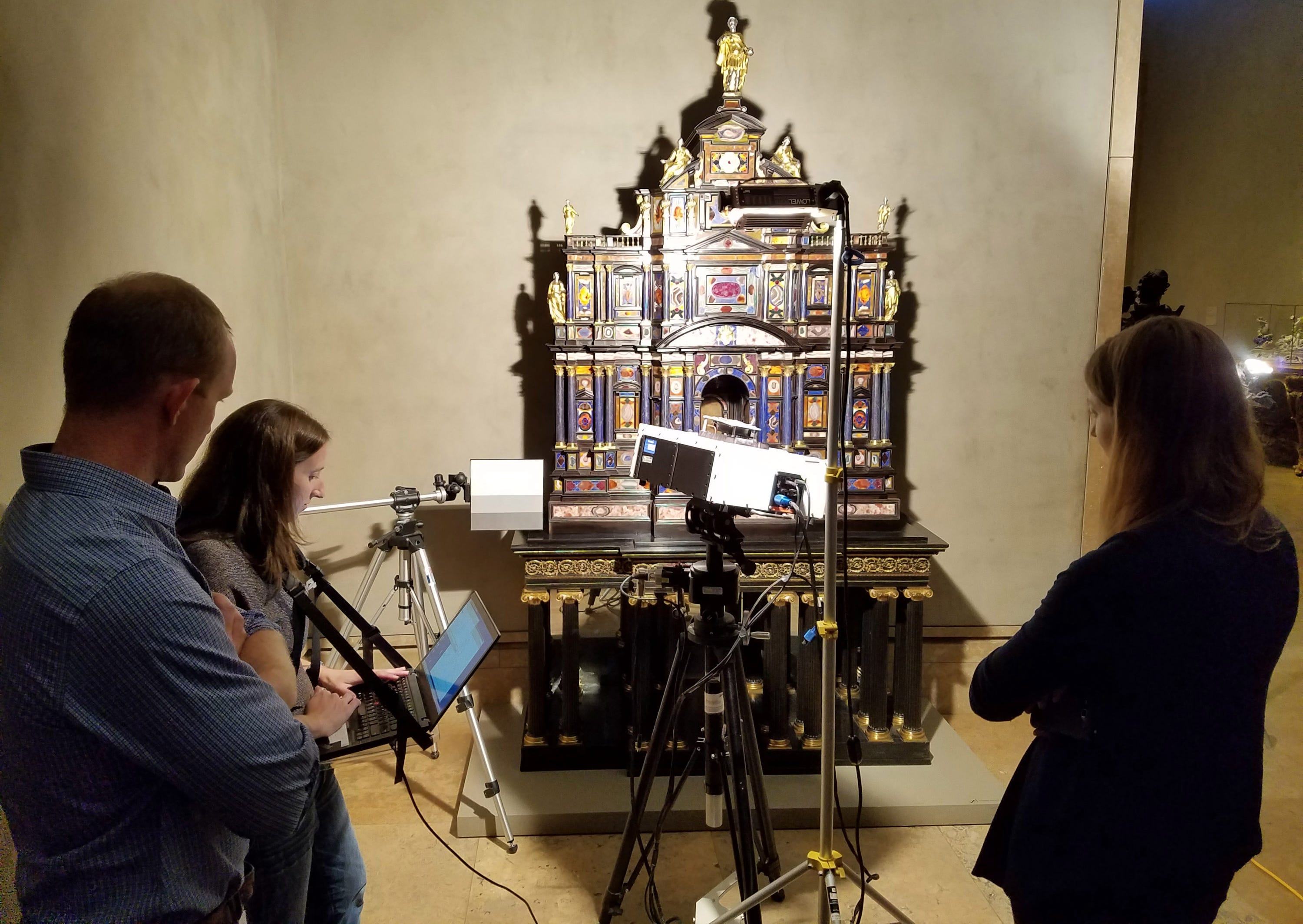

With the help of Getty conservator Arlen Heginbotham, and using hyperspectral imaging equipment developed with colleagues at Caltech — a custom-built Headwall Photonics sensor that captures both visible and shortwave infrared wavelengths simultaneously — we imaged the entire surface of the Borghese-Windsor Cabinet. Every panel. Every fitted stone. The instrument sees what the eye cannot: differences in reflectance that correspond to differences in mineralogy, traced across the full surface in a single pass.
We compared what we saw on the cabinet to what we had measured in the laboratory.
The cabinet had something to show us.
Two Populations
There are two distinct populations of agate on the Borghese-Windsor Cabinet.

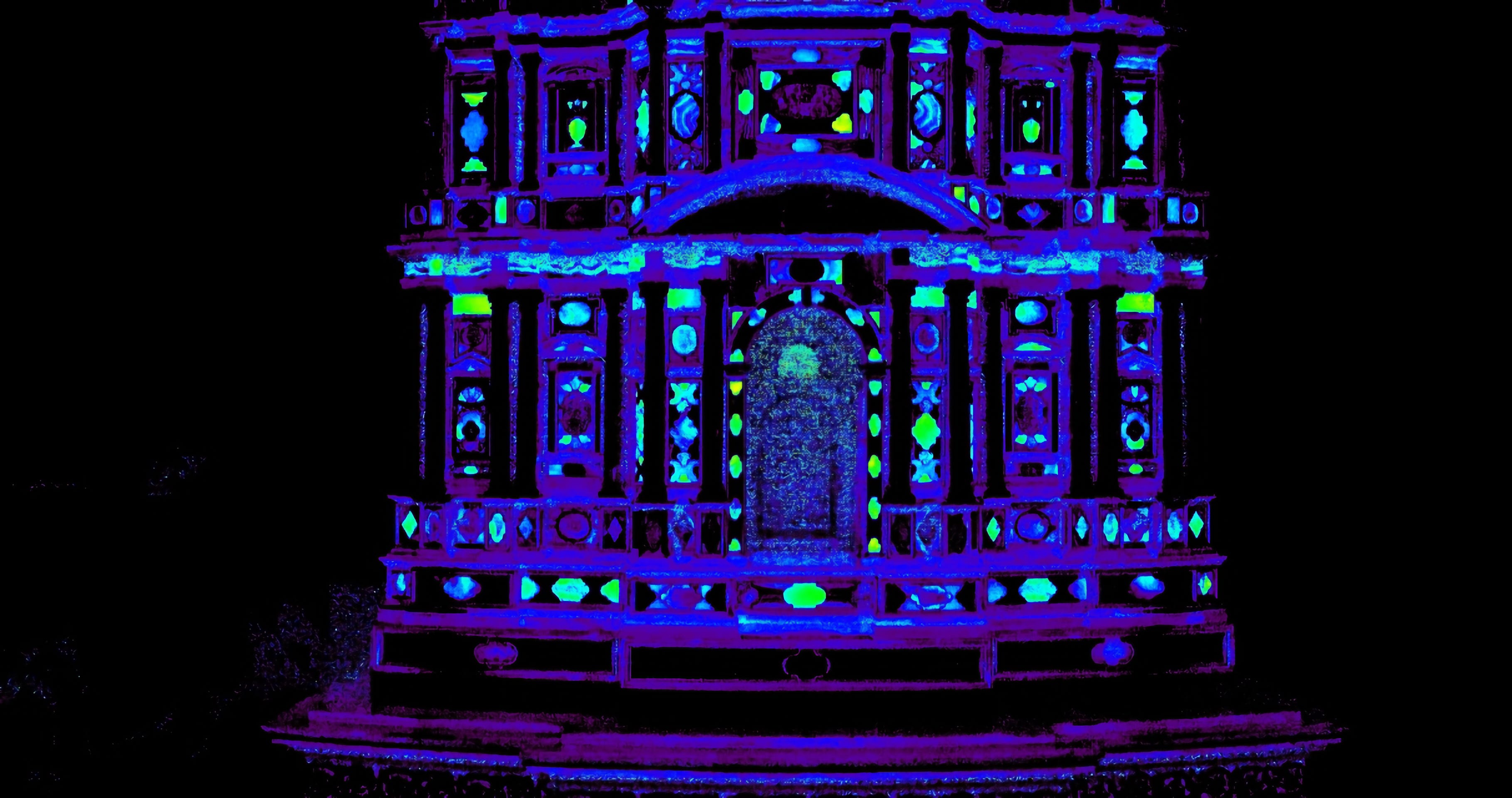

Look at the image above. The cabinet is the same object you saw in the first photograph, but now the instrument has stripped away everything except chemistry. The ebony goes black. The gilt bronzes disappear. And the agate panels divide themselves, with no ambiguity, into two groups: those that fluoresce one way, and those that fluoresce another. The eye couldn’t see this. The instrument could.
The first population matches Idar-Oberstein cleanly. Low moganite. Old stone. Ancient Permian silica from the Nahe Valley, exactly as the historical record would predict. These appear as the darker, cooler panels in the hyperspectral image — spectrally quieter, geologically older.
The second population is brighter. Its spectral signature is not what we see from the Idar-Oberstein reference specimens. And here is where it gets interesting: it doesn’t clearly match Brazilian agate either. It’s brighter than the German material, but it doesn’t show the strong red hyperspectral colors we associate with Rio Grande do Sul agate in our reference library.
About half the agate on this cabinet carries a different geological biography than we expected. We just don’t yet know which one.
Where Did the Other Half Come From?
This is the part of the investigation that is still open. And I want to be honest with you about what we know, what we suspect, and what remains genuinely mysterious.
The moganite clock tells us the second population is probably younger than the Idar-Oberstein material — meaning it’s not from the Nahe Valley. But younger could mean a lot of things. It could mean a different European locality. It could mean India. And — here is the hypothesis I find genuinely plausible, if not yet provable — it could mean Brazil, arriving by a route that nobody has documented but that history suggests was entirely possible.
Before we get to the candidates, one alternative explanation deserves to be named and set aside: restoration. Over four centuries, a cabinet accumulates repairs. Could the second population of agate be replacement material — stones swapped in during some 19th or 20th-century conservation intervention, sourced from wherever was convenient at the time?
I went directly to the Getty conservation team with this question. The answer is no. Every restoration performed on the Borghese-Windsor Cabinet is documented in meticulous detail — what was done, when, by whom, using what materials. The conservation records account for the object’s condition comprehensively. There is no documented agate replacement that would explain a second geological population distributed across half the cabinet’s surface. The stones are original. The question of where they came from stands.
India: Agate from the Gujarat region, around the port of Cambay, was present in European trade networks by the 16th century. The Portuguese, who controlled the spice routes through the Indian Ocean, were moving material from India to Lisbon well before 1620. Indian agate is also Deccan Traps in origin — Cretaceous volcanic flows, younger than the Permian Nahe Valley material. It would show elevated moganite. It is a real candidate, and ruling it out requires reference specimens from the right Indian localities that I haven’t yet had the chance to analyze. That expedition is next.
Bohemia: There are other European agate localities — Bohemia produced agate worked into objects during this period. Whether the spectral signature would be distinguishable from Idar-Oberstein material at this level of analysis is an open question.
Brazil: Here is where the story opens up.
To understand why Brazil is a genuine candidate rather than a romantic guess, you have to go back to 1528, and to a debt.
The Holy Roman Emperor Charles V owed an enormous sum of money to the Welser family — a banking and merchant dynasty based in Augsburg, in what is now southern Germany. He couldn’t repay it in coin. So he repaid it in territory. The Welsers were given colonial rights to the province of Venezuela, in exchange for the debts Charles had accumulated financing his own imperial election. They named the colony Klein-Venedig — Little Venice. It existed from 1528 to 1546, and it was staffed, from the beginning, with German miners.
Not farmers. Miners. The Welsers sent organized extraction operations into South America at the same moment the stones for the Borghese-Windsor Cabinet were beginning to be sourced. Their contemporaries and rivals, the Fugger family — equally vast, equally German, equally Augsburg-based — were running what amounted to the largest mining corporation in Europe, with operations spanning the Tyrol, Hungary, Silesia, and Spain, and products moving through Lisbon to Africa and India. Both families had trade offices threading South America into the European mainland. The Welsers maintained outposts simultaneously in Lisbon, Rome, and Santo Domingo. Lisbon: the port through which any Brazilian material would have transited north. Rome: the city where the cabinet was being built.
And the Welsers weren’t just moving spices and sugar through Lisbon. Surviving business records from the early 1540s document Bartholomäus Welser’s representative in Lisbon, Konrad Stuntz, drawing 1,800 ducats from the firm’s account specifically to purchase precious stones — gemming thirty rings with diamonds and rubies for the European market. German merchant capital, flowing through Lisbon, buying stones. This was their business. This is what they did.
Klein-Venedig collapsed in 1546 when the Spanish crown revoked the Welsers’ charter. But the Welser firm itself didn’t die with the colony — it limped on, reorganized, continued trading through its Lisbon and Antwerp offices, and didn’t finally go bankrupt until 1614. Six years before the Borghese-Windsor Cabinet was built. The network outlasted the colony by seven decades.
Then came the Iberian Union.
In 1580, a succession crisis handed the Portuguese crown to the Habsburg king Philip II of Spain. Portugal and Spain — and all their colonial empires — came under a single ruler. The union lasted until 1640. The cabinet was built in 1620, squarely in the middle of it. This matters: during the Iberian Union, German merchants with existing Habsburg relationships had structural access to both the Portuguese and Spanish colonial worlds simultaneously. The wall between the Portuguese Atlantic and German commercial networks hadn’t just developed a door — it had been partially removed by the same dynasty the Welsers and Fuggers had been financing for a century.

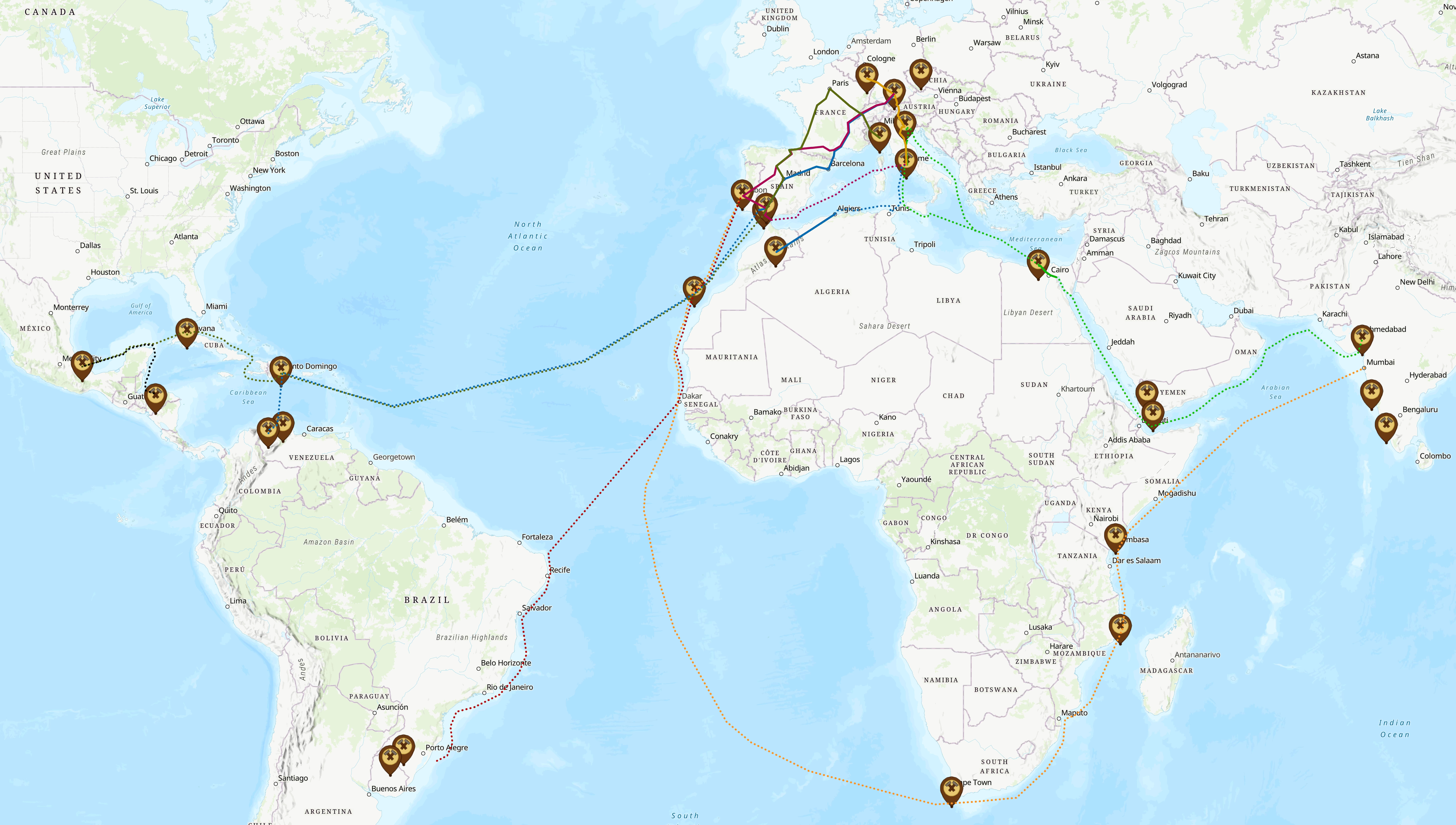

Click here for the interactive version of the agate and trade map. The map online has detailed information about the historical and modern agate deposits, as well as information on trade routes. This took me quite a long time to compile.
German colonial presence near the agate deposits of Rio Grande do Sul in southern Brazil didn’t come until much later. The great wave of German immigration to that region — the settlers who would eventually discover the agate and ship it home as ballast in the 1820s — didn’t arrive until after Brazilian independence in 1822. Those settlers came from the same communities, carrying the same lapidary traditions, following the same gravitational pull toward extractable stone. They were the heirs of a relationship between German mining culture and South American geology that the Welsers had begun three centuries earlier.
What I have not found — and I want to be precise about this — is a specific cargo manifest documenting rocks from Brazil moving through Lisbon to Germany or Rome in the years between 1550 and 1820. That document may exist in the Arquivo Histórico Ultramarino in Lisbon, where Portuguese colonial shipping records from this period are held. Much of it has never been digitized, and none of it has been searched with this question in mind. What I have found is the people, the network, the motive, and the mechanism. The Welsers were buying stones through Lisbon in the 1540s. Their trade infrastructure survived until 1614. The Iberian Union opened the Portuguese Atlantic to Habsburg-connected German merchants at exactly the moment the cabinet was being built. The ballast mechanism is documented history for the 1830s.
When I find that cargo manifest, I’ll post it as a comment.
In the 1820s, German emigrants in Brazil — many of them from Idar-Oberstein itself, driven out by hunger and a collapsing local industry — discovered enormous agate deposits in Rio Grande do Sul. The deposits were unlike anything they had seen at home: nodules the size of cannonballs, banded in layers so even and regular they looked almost manufactured. Beautiful material. And worthless, in the middle of Brazil, without a way to get it home.
They couldn’t afford to ship it commercially. So they convinced ship captains to load rough agate nodules as ballast for the return voyage to Europe. Ballast is weight. Weight is necessary. Rocks are free. The agate crossed the Atlantic as a passenger nobody intended to carry, and arrived in Idar-Oberstein in 1834. It saved the industry. Within a decade, up to 300 tons of Brazilian agate per year were making that crossing, and Idar-Oberstein was cutting stone for the world again.
The cabinet’s second population is bright enough, spectrally, to be consistent with younger agate. Whether it’s Indian, Brazilian, or something else entirely, I cannot yet say. The analysis is ongoing. We’re expanding the reference library, adding specimens from additional localities, building a more complete picture of what early 17th-century agate trade actually looked like in three dimensions.
The Cabinet That Hasn’t Been Asked Yet
There is one more object in this story.
The Sixtus Cabinet — the companion piece, built in 1585 for Pope Sixtus V — has never been analyzed. It sits in its own institution, decorated with agate from the same era and presumably sourced through the same networks as the Borghese-Windsor. If that cabinet also has two populations, we have a pattern. If it has one, we have a clue about what changed between 1585 and 1620. If it has three, all bets are off.
I know what instrument would answer that question. Someday, I’d like to have one.
What the Cabinet Knows
Four hundred years ago, someone chose these stones. They cut them and fitted them into the surfaces of an object built for a cardinal who would become pope, and they did it well enough that the cabinet survived dynasties and wars and the entire arc of the modern era and ended up in Los Angeles, where a mineralogist could point a spectrometer at it and discover that half its stones came from somewhere unexpected.
The label still says what labels always say. The analysis is still ongoing. The reference library is growing.
The cabinet has been patient. It can wait a little longer.
Aaron Celestian is Curator of Mineral Sciences at the Natural History Museum of Los Angeles County, former scientist at NASA’s Jet Propulsion Laboratory, and adjunct professor at USC. He writes Pocketful of Χtals because mineralogy is stranger and more alive than most people have been told.
If something in this post changed how you see a stone you’ve been carrying around — that’s the whole idea.
Acknowledgements
Getty Museum - Arlen Heginbotham
Caltech - Bethany L. Ehlmann and Rebecca Greenberger
